Clients may not have access to some equipment, but there is always a solution.
Before 3D photogrammetry and scanning we had already developed a method to copy profiles to an acceptable level of accuracy, monitoring against key dimensions. This is still useful for conversion of larger-scale drawings when scanning is not available and a client requests a conversion to CAD. We can use their photos and apply corrections before using them as a basis for the conversion.

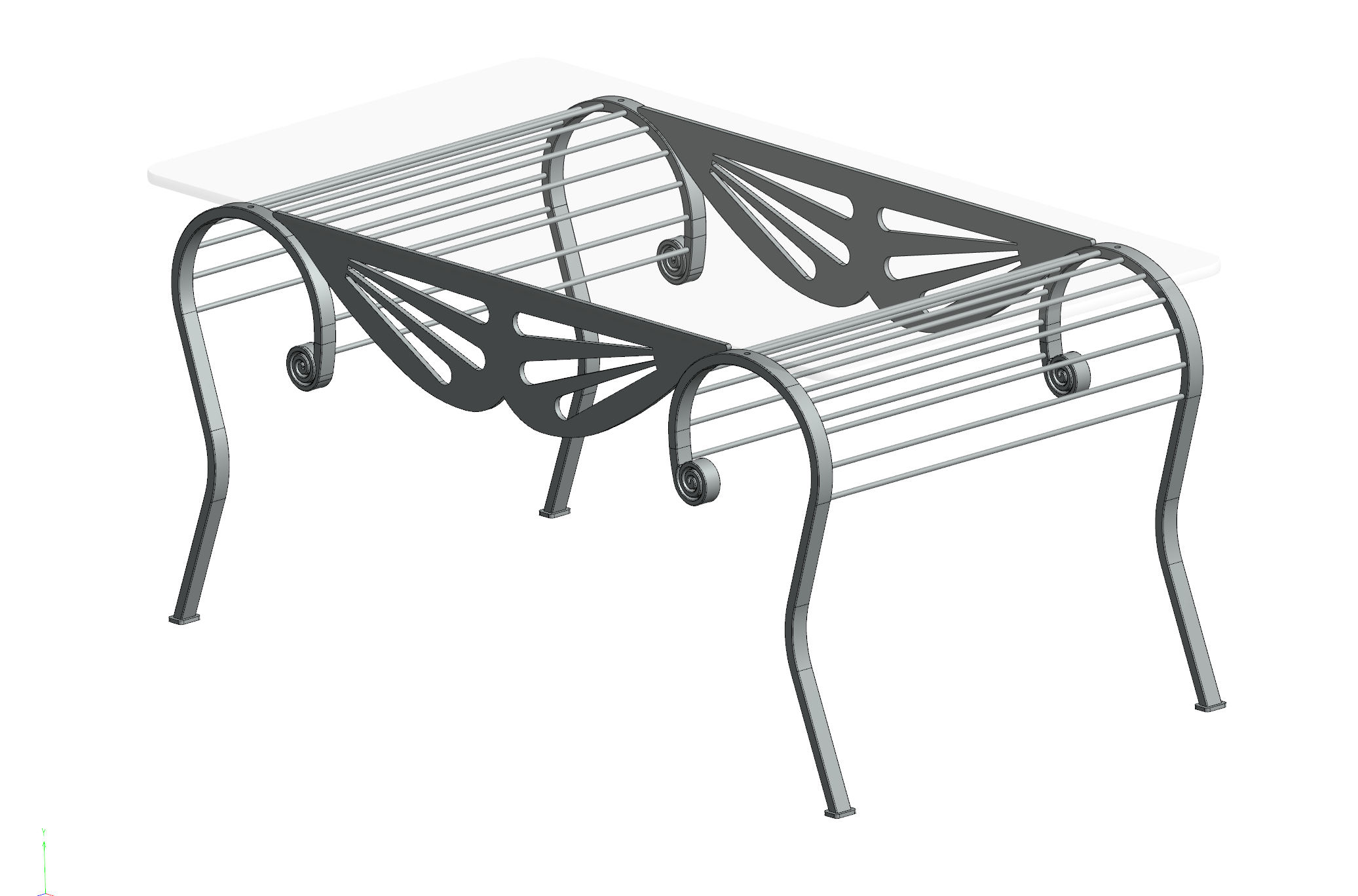

Flat image from a 3D PDF supplied to the client so that they could review in 360°.

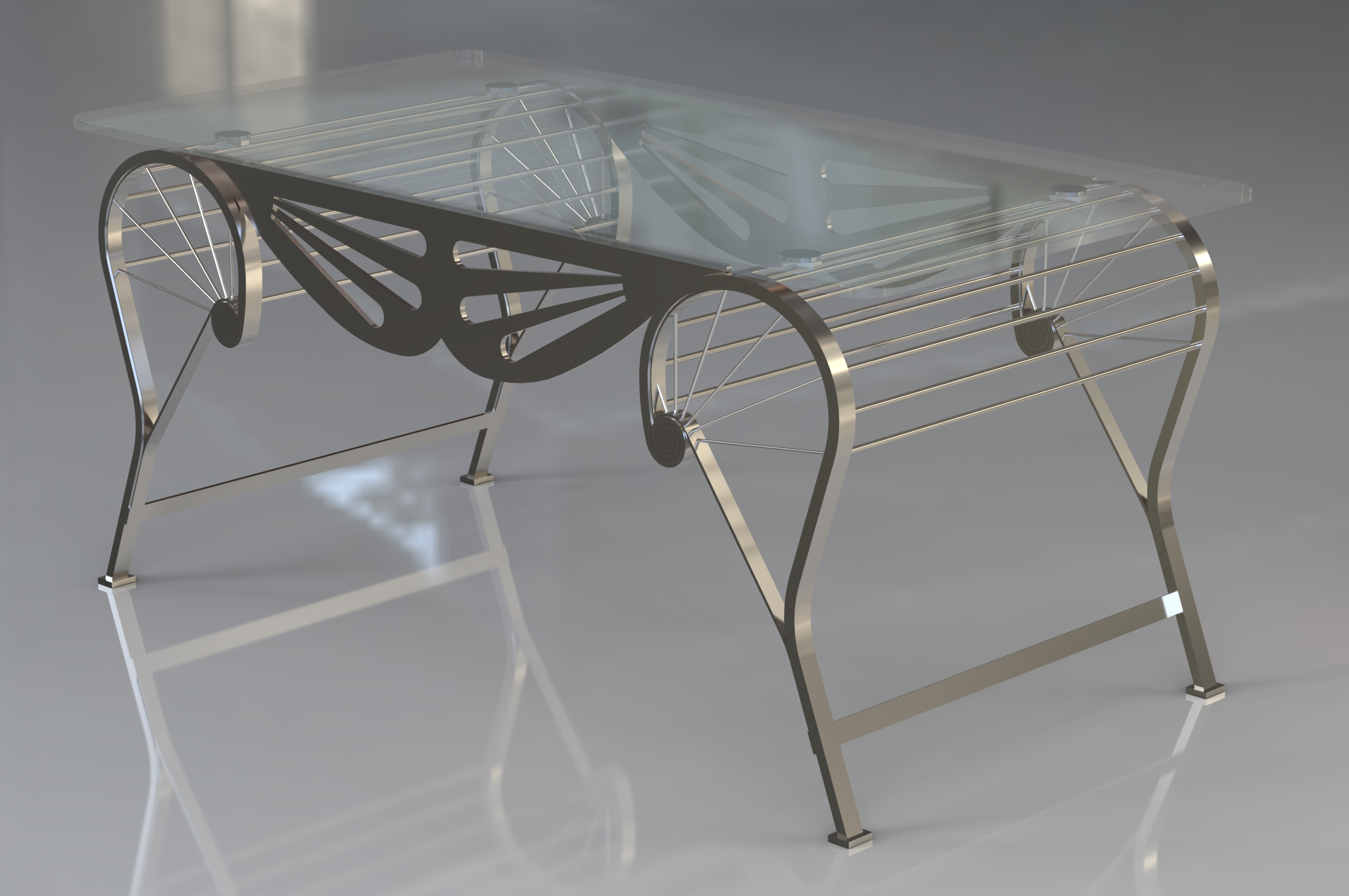

Early visualisation was important to ensure that the manufacturing data would reproduce what the client envisaged. Screenshots, 2D and 3D PDF files and other viewing formats help a client see the development of their project in way that is familiar to them.

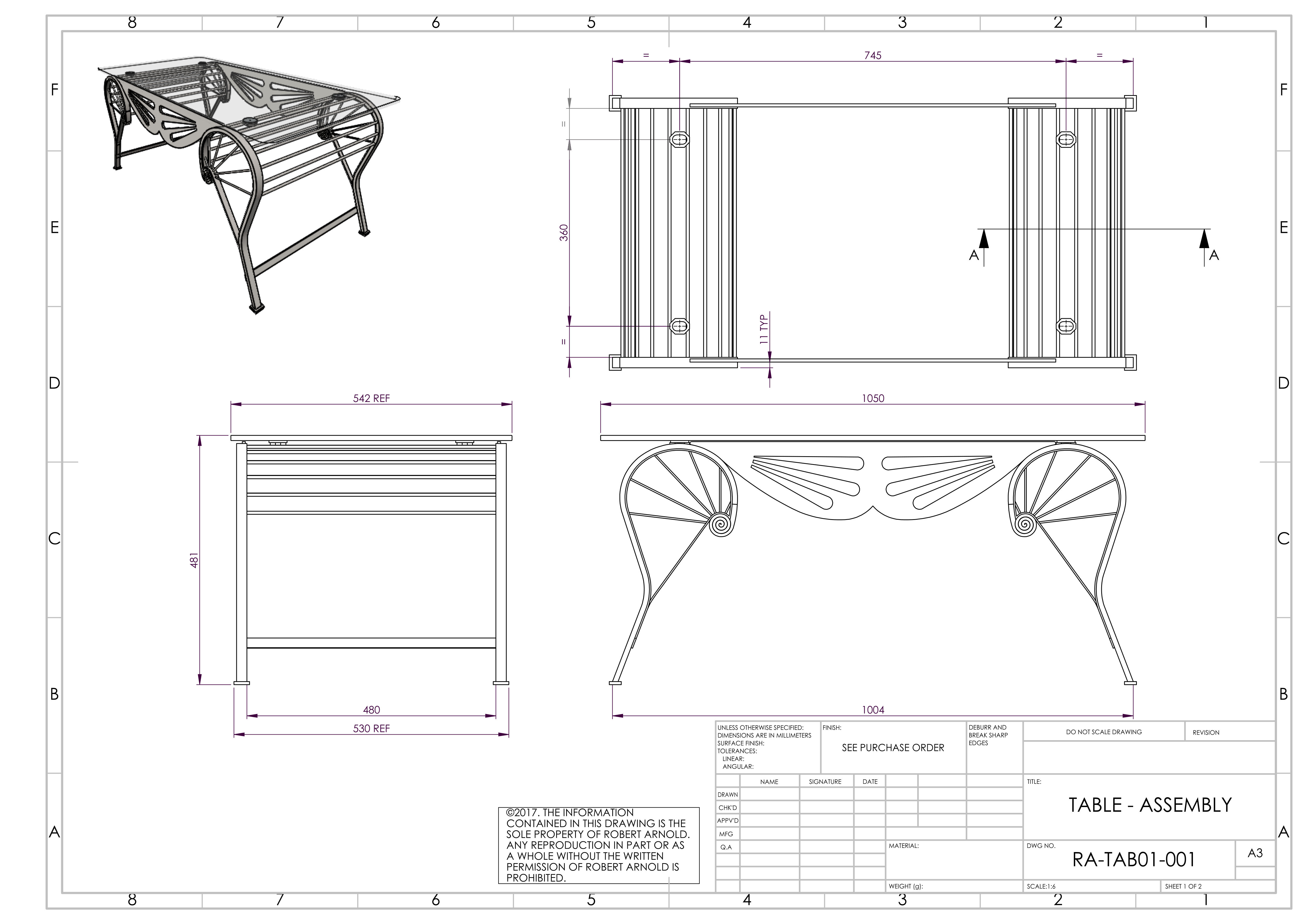

Typical quotation level drawing, on a 'vanilla' drawing border (we can use ours, or yours).
After design approval, Perdix Design generated quotation and complete fabrication packs. A typical pack may contain all manufacturing drawings, inspection sheets and any testing requirements, but is always tailored to the specific needs of the project and the client.
The completed design incorporated glass, bonded fixings, fabrication and steel casting.
Perdix Design added specific value with our knowledge of manufacturing techniques, materials and joining methods, applying these to achieve a coherent product and ensuring compliance with UK standards for furniture.

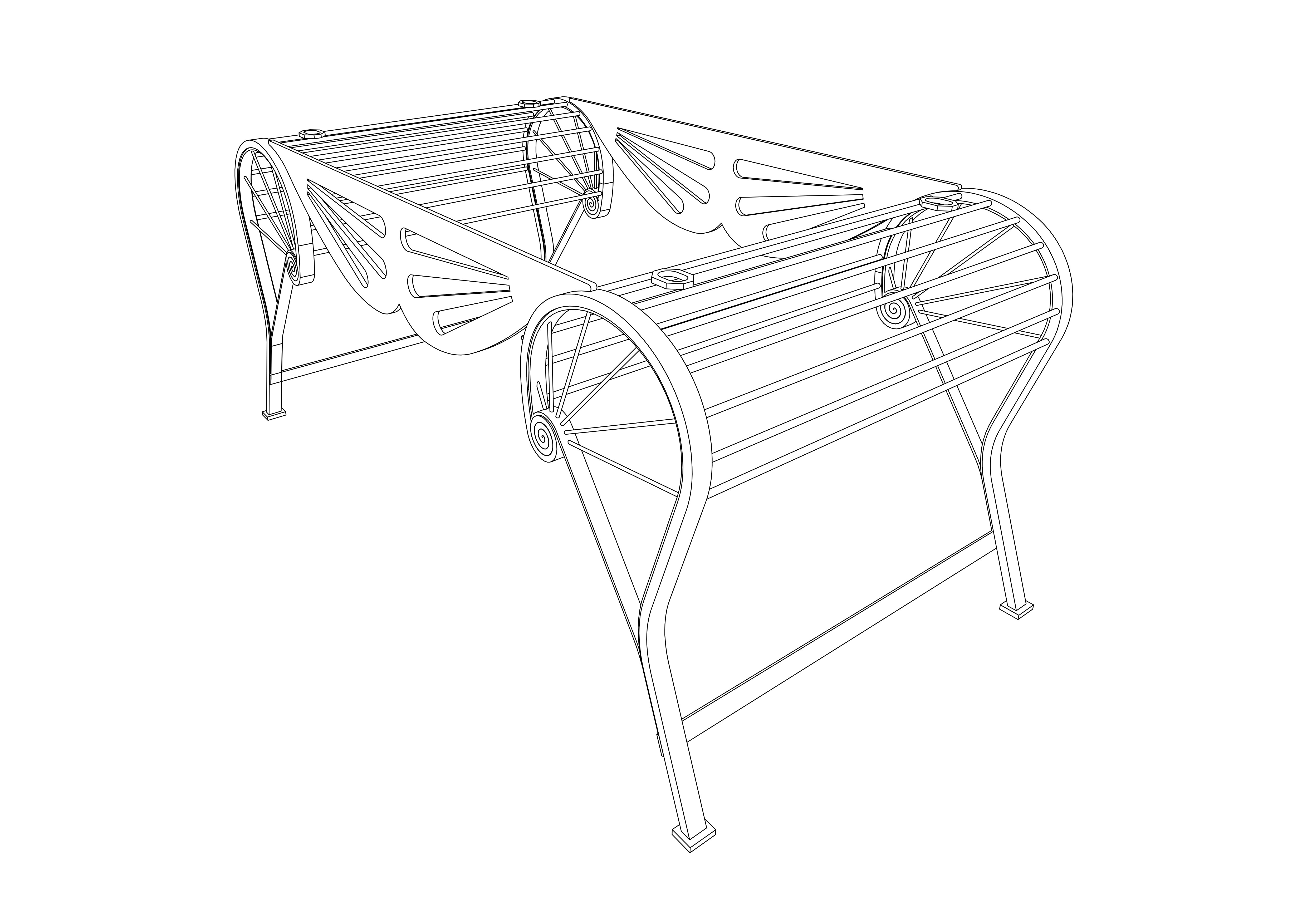

Typical simple line drawing compliant with IP registration of the design.
In closing out the project, Perdix Design provided advice on Design Registration and Intellectual Property (IP) protection and provided simplified drawings to suit the requirements of the IP protection and the registrations chosen.
